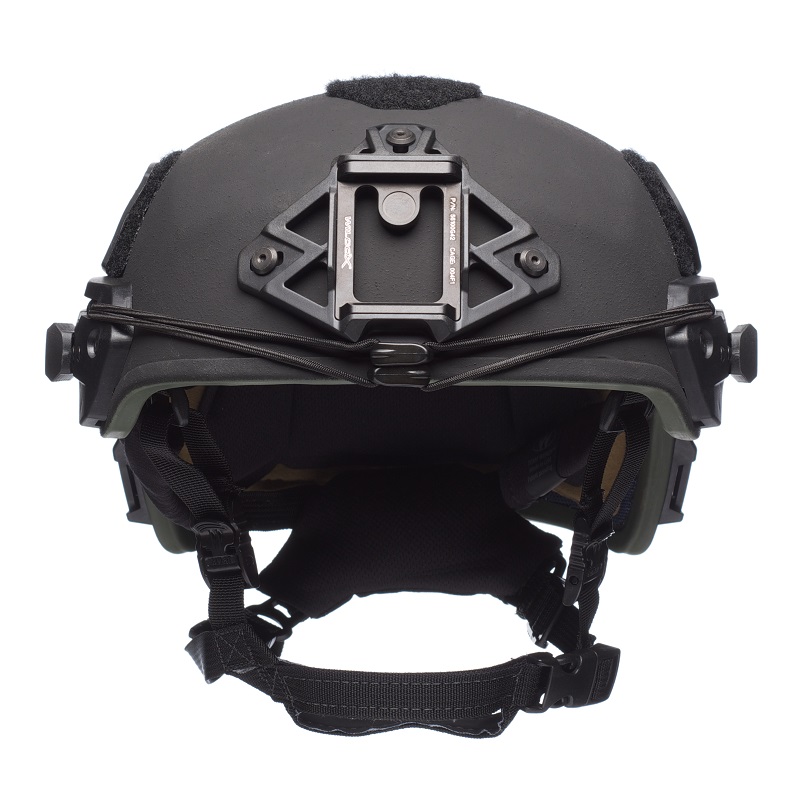

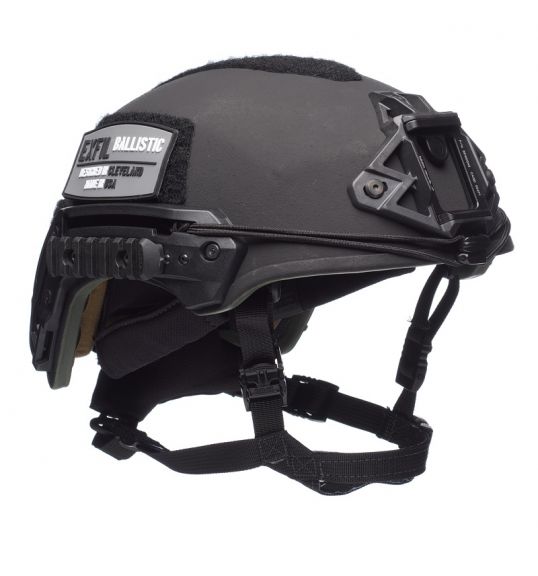

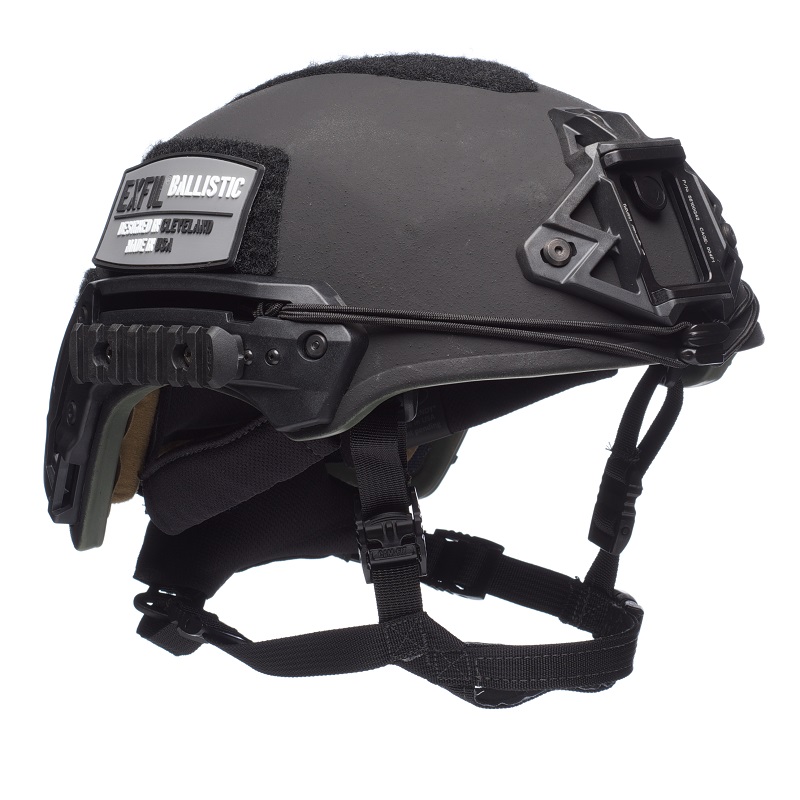

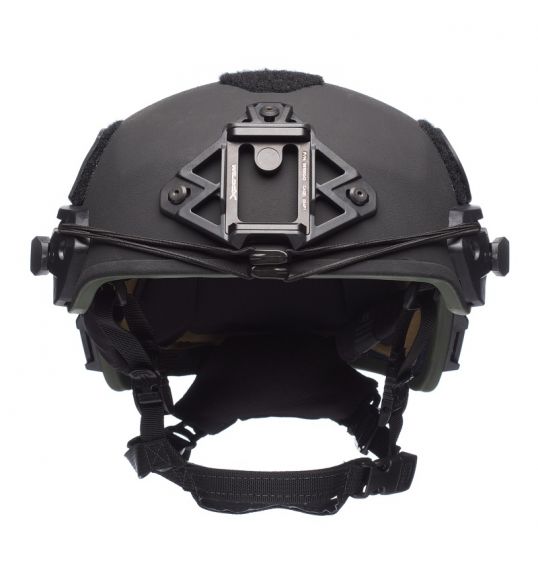

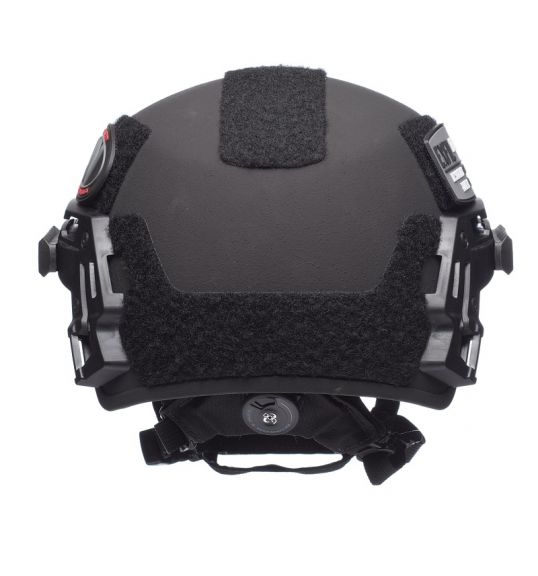

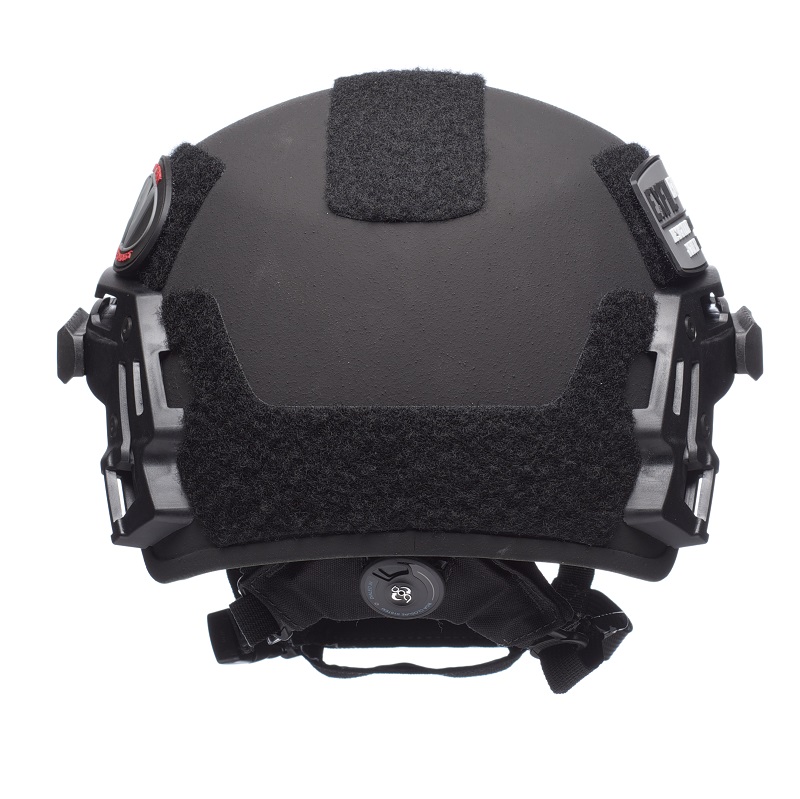

The EXFIL® Ballistic features a hybrid composite shell with unique geometry for increased strength and optimal fit. An innovative, boltless CAM FIT™ retention quickly adjusts to individual head shapes, providing a comfortable and stable fit. A Zorbium® foam liner protects against impact and allows for an overhead communications headband. Customizable fit is achieved through a set of moveable comfort pads. The EXFIL® rail 2.0 accessory mounting system is compatible with all EXFIL® accessories and features T-slots for custom mounting. A lanyard compatible Wilcox® shroud secures any standard NVG mount.
Boltless CAM FIT™ Retention System
Utilizes Boa® Closure System for optimized stability and fit
The CAM FIT™ Retention System comes standard with the side release buckle on the left side of the face for right eye dominant shooters. It is also available in a Left Eye Dominant (LED) option that moves the buckle to the right side of the face for left eye dominant shooters.
Zorbium® Foam Liner
16 customizable comfort pads in 2 thicknesses
Removable center pad to easily accommodate overhead comms
Replacement comfort pads available for purchase
Rail 2.0 Accessory Mounting System
Compatible with all EXFIL® Rail 2.0 Accessories
Includes two MAGPUL MOE® picatinny style rails and mounting hardware
Two T-Slots for DIY custom mounting
Includes shock cord kit for stabilizing NVG
Shroud
3 hole Wilcox® W shroud
Lightweight aerospace grade aluminum mount interface
Compatible with Wilcox® NVG lanyard
Compatible with most standardized NVG mount baseplates
Performance
Ballistic Performance
NIJ Level IIIA (according to NIJ STD 0106.01 / 0108.01)
Fragment Performance
Fragment Performance: 17gr V50 ≥ 2400 ft/sec (731 m/s)
Backface Deformation
9mm (1400fps) BFD: <25mm all locations (front/back/crown/sides) exposed to high temp/humidity, solar, low temperature, altitude, sea water, and salt fog
Blunt Impact Performance
Exceeds current ACH Blunt Impact Protection requirements (per AR/PD 10-02)- average below 70G across all impacts and temperatures
Weight
* Complete system weight includes helmet shell, accessory rails, impact liner and retention system
Size Complete System Weight Shell Weight
Size 1 (M-L) 2.6 lbs (1.18 kg) 1.75 lbs (0.79 kg)
Size 2 (XL) 2.75 lbs (1.25 kg) 1.8 lbs (0.84 kg)
Sizing
Size Head Circumference ( in. ) Head Circumference ( cm ) Hat Size
Size 1 (M-L) 20.5-23.5 52-60 6 5/8- 7 1/2
Size 2 (XL) 23-24.75 58-63 7 3/8- 7 7/8
- NIJ Standard - 0101.06
- German Schutzklassen (Oct 2000) Protective Vests
- PSDB Ballistic Body Armour Standard (2003)
- European, prEn ISO 14876-2
- NIJ Standard - 0101.04
- NIJ Standard 0115.00, USA
- Russian - GOST R 50744-95
- VPAM - 2006
NIJ Standard – 0101.06
| Threat level | Ammunition | Bullet Weight (gm/gr) |
Bullet Velocity
(± 9 m/s) |
BFS Deformation (mm) |
No. of Shots |
|
|---|---|---|---|---|---|---|
| Conditioned | New Armor | |||||
| IIA | 9 mm FMJ RN .40 S&W FMJ |
8 / 124 11.7 / 124 |
355 m/s 325 m/s |
373 m/s 352 m/s |
44 44 |
6 6 |
| II | 9 mm FMJ RN .357 Mag. JSP |
8 / 124 10.2 / 58 |
379 m/s 408 m/s |
398 m/s 436 m/s |
44 44 |
6 6 |
| IIIA | .357 SIG FMJ FN .44 Mag. SJHP |
8 / 124 15.6 / 240 |
430 m/s 408 m/s |
448 m/s 436 m/s |
44 44 |
6 6 |
| III | 7.62 mm NATO FMJ | 9.6 / 148 | 847 m/s | ——— | 44 |
6 |
| IV | .30 Caliber M2AP | 10.8 / 166 | 878 m/s | ——— | 44 | 1 to 6 |
PSDB Ballistic Body Armour Standard (2003)
| Threat level |
Ammunition | Bullet Weight (gm) |
Bullet Velocity (m/s) |
BFS Deformation (mm) |
|---|---|---|---|---|
| HGI/A | 9mm FMJ .357 Mag. JSP |
8 10.2 |
360 ± 10 385 ± 10 |
44 44 |
| HG1 | 9mm FMJ .357 Mag. JSP |
8 10.2 |
360 ± 10 385 ± 10 |
25 25 |
| HG2 | 9mm FMJ .357 Mag. JSP |
8 10.2 |
425 ± 10 450 ± 10 |
25 25 |
| SG 1 | Shotgun 12 gauge True Cylinder |
28.4 | 435 ± 25 | 25 |
| RF 1 | Rifle 7.62 mm Calibre | 9.3 | 830 ± 15 | 25 |
NIJ Standard – 0101.04
| Threat level | Ammunition | Bullet Weight (gm/gr) |
Bullet Velocity
(± 9 m/s) |
BFS Deformation (mm) |
No. of Shots |
|---|---|---|---|---|---|
| I | .22 Calliber LR LRN .380 ACP FMJ RN |
2.6 / 40 6.2 / 95 |
329 322 |
44 44 |
6 6 |
| IIA | 9 mm FMJ RN 40 S&W FMJ |
8 / 124 11.7 / 124 |
341 322 |
44 44 |
6 6 |
| II | 9 mm FMJ RN 357 Mag JSP |
8 / 124 10.2 / 58 |
367 436 |
44 44 |
6 6 |
| IIIA | 9 mm FMJ RN 44 Mag SJHP |
8 / 124 15.6 / 240 |
436 436 |
44 |
6 |
| III | 7.62 mm NATO FMJ | 9.6 / 148 | 848 | 44 | 6 |
| IV | .30 Caliber M2 AP | 10.8 / 166 | 878 | 44 | 1 |
German Schutzklassen (Oct 2000) Protective Vests
| Threat level |
Ammunition | Bullet Weight (gm) |
Bullet Velocity (m/s) |
BFS Deformation (mm) |
|
|---|---|---|---|---|---|
| Convert and contact shot |
Over | ||||
| L | 9 mm Luger, FMJ. RN/LC, Zn DM41 SR, DAG |
8 | 365 ± 5 | 36 - 44 | 18 - 22 |
| 1 | 9 mm Luger, FMJ. RN/LC, Zn DM41 SR, DAG |
8 | 410 ± 10 | 36 - 44 | 18 - 22 |
| 2 | .357 Magnum BFN DAG |
7.1 | 580 ± 10 | 36 - 44 | 18 - 22 |
| 3 | 5.56 x 45 FMJ + P, SS109, FNB 7.62 x 51 FMJ, DM111, MEN |
4 9.45 |
920 ± 10 830 ± 10 |
——— | 18 - 22 |
| 4 | 7.62 x 51 AP, P80, FNB |
9.75 | 820 ± 10 | ——— | 18 - 22 |
European, prEn ISO 14876-2
| Threat level | Ammunition | Bullet Weight (gm/gr) |
Bullet Velocity
(± 9 m/s) |
BFS Deformation (mm) |
|---|---|---|---|---|
| 1 | 9 x 19 mm, FMSJ | 8 | 360 ± 10 | 44 |
| 2 | 9 x 19 mm, FMSJ | 8 | 415 ± 10 | 44 |
| 3 | 9 x 19 mm, FMSJ .357 Mag, FMJ |
8 10.2 |
425 ± 10 430 ± 10 |
44 44 |
| 4 | 5.56 x 45 mm, M 193 7.62 x 51 AP NATO Ball |
3.6 9.4 |
970 ± 10 830 ± 10 |
44 44 |
| 5 | 7.62 x 51 AP Hardended Steel Core |
9.7 | 820 ± 10 | 44 |
| S | 12/70 guage, Benneke Solid Lead Slug |
32.0 | 425 ± 10 | 44 |
Russian – GOST R 50744-95
| Threat level |
Ammunition | Bullet Weight (gm) |
Bullet Velocity (m/s) |
BFS Deformation (mm)Convert and contact shotOver |
|---|---|---|---|---|
| 1 | Makarov "PM"; 9mm Nagan 7.62; Lead |
5.9 6.8 |
305-325 275-295 |
17 17 |
| 2 | "PSM" 5.45; Steel Tokarev "TT" 7.62; Steel |
2.5 5.5 |
310-335 415-445 |
17 17 |
| 2a | 12" 18.5; Lead | 35 | 390-410 | 17 |
| 3 | AK 74 5.45; Unhardened Steel AKM 7.62; Unhardened Steel |
3.4 7.9 |
890-910 710-740 |
17 17 |
| 4 | AK 74 5.45; Hardedned Steel | 3.6 | 890-910 | 17 |
| 5 | SVD Dragunov, Unhradened Steel AKM 7.62; Hardedned Steel |
9.6 7.9 |
820-840 710-740 |
17 17 |
| 5a | AKM 7.62; Special | 7.4 | 720-750 | 17 |
| 6 | SVD Dragunov, Hardened Steel | 9.6 | 820-840 | 17 |
| 6a | SVD Dragunov, Special | 10.4 | 800-835 | 17 |
NIJ Standard 0115.00, USA
| Test method: | Drop test/ double punch (drop weight 1900 g) | ||||||||
| Backing material: | Composition of layers of foam and rubber | ||||||||
| Blades: | Engineered test blades PSDB/P1/A and PSDB/S1/G | ||||||||
| Spike: | Engineered test spike | ||||||||
| Stab Energies: |
|
||||||||
| No. of attacks: | 4x E1 at 0°; 4x E2 at 0°; 4x E1 at 45° with each blade and or the spike | ||||||||
| Max. penetration into backing: | 7mm for E1 and 20mm for E2 | ||||||||
| Measurement of penetration: | blade/spike protruding length; witness paper | ||||||||
| Min distances: | 51 mm from the edges and any previous attack | ||||||||
| Particularities: | Blade/ spike only and Blade + spike protection permitted |
VPAM - 2006
| Ammunition | No. of shots performed under the following conditions | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inspection Level | Test-Bullet | Bullet weight [g] | Bullet producer | Distance | Bullet velocity [m/s] |
0° | 65° | 0° / contact shot | 0° | 0° | V50 test | Padding down | ||
| optional | ||||||||||||||
| +20°C | +20°C | +20°C | +40°C climat | -20°C | +70°C | |||||||||
| 1 | 22 Long rifle | L/RN | 2,6 ± 0,1 | Winchester | 10 + 0,5 | 360 ± 10 | 3+1 | 3 | 3 | 3 | 3 | 3 | yes | yes |
| 2 | 9mm Luger | FMJ/RN/SC;tinned | 8,0 ± 0,1 | DAG, DM 41 | 5 + 0,5 | 360 ± 10 | 3+1 | 3 | 3 | 3 | 3 | 3 | yes | yes |
| 3 | 9mm Luger | FMJ/RN/SC;tinned | 8,0 ± 0,1 | DAG, DM 41 | 5 + 0,5 | 415 ± 10 | 3+1 | 3 | 3 | 3 | 3 | 3 | yes | yes |
| 4 | .357 Mag | FMJ/CB/SC | 10,2 ± 0,1 | Geco | 5 + 0,5 | 430 ± 10 | 3 | 3 | 3 | 3 | 3 | |||
| .44 Rem. Mag | FMJ/FN/SC | 15,6 ± 0,1 | Speer | 5 + 0,5 | 440 ± 10 | 3 | 3 | 3 | 3 | 3 | ||||
| 5 | .357 Mag | FMs/CB | 7,1 ± 0,1 | DAG, Special | 5 + 0,5 | 580 ± 10 | 3 | 3 | 3 | 3 | 3 | |||
| 6 | 7,62 x 39 | FMJ/PB/FeC | 8,0 ± 0,1 | PS | 10 + 0,5 | 720 ± 10 | 3 | 3 | 3 | 3 | 3 | |||
| 7 | 223 Rem | FMJ/PB/SCP | 4,0 ± 0,1 | MEN, SS 109 | 10 + 0,5 | 950 ± 10 | 3 | 3 | 3 | 3 | 3 | |||
| 308 Win. | FMJ/PB/SC | 9,55 ± 0,1 | MEN, DM 111 | 10 + 0,5 | 830 ± 10 | 3 | 3 | 3 | 3 | 3 | ||||
| 8 | 7,62 x 39 | FMJ/PB/SCI | 7,7 ± 0,1 | BZ | 10 + 0,5 | 740 ± 10 | 3 | 3 | 3 | 3 | 3 | |||
| 9 | 308 Win. | FMJ/PB/HC | 945 ± 0,1 | FNB, P 80 | 10 + 0,5 | 820 ± 10 | 3 | 3 | 3 | 3 | 3 | |||
| 10 | 7,62 x 54 R | FMJ/PB/HCI | 10,4 ± 0,1 | B32 | 10 + 0,5 | 860 ± 10 | 3 | 3 | 3 | 3 | 3 | |||
| 11 | 308 Win. | FMJ/PB/WC | 8,4 ± 0,1 | Nammo, AP 8 | 10 + 0,5 | 930 ± 10 | 3 | 3 | 3 | 3 | 3 | |||
| 12 | 308 Win. | FMJ/PB/WC | 12,7 ± 0,1 | SWISS P AP | 10 + 0,5 | 810 ± 10 | 3 | 3 | 3 | 3 | 3 | |||
| 13 | 50 Browning | FMJ/PB/HC | 43,0 ± 0,5 | SWISS P Penetrator | 930 ± 20 | 3 | 3 | 3 | 3 | 3 | ||||
| 14 | 14,5 x 114 | FMJ/PB/HCI | 63,4 ± 0,5 | B32 | 911 ± 20 | 3 | 3 | 3 | 3 | 3 | ||||
