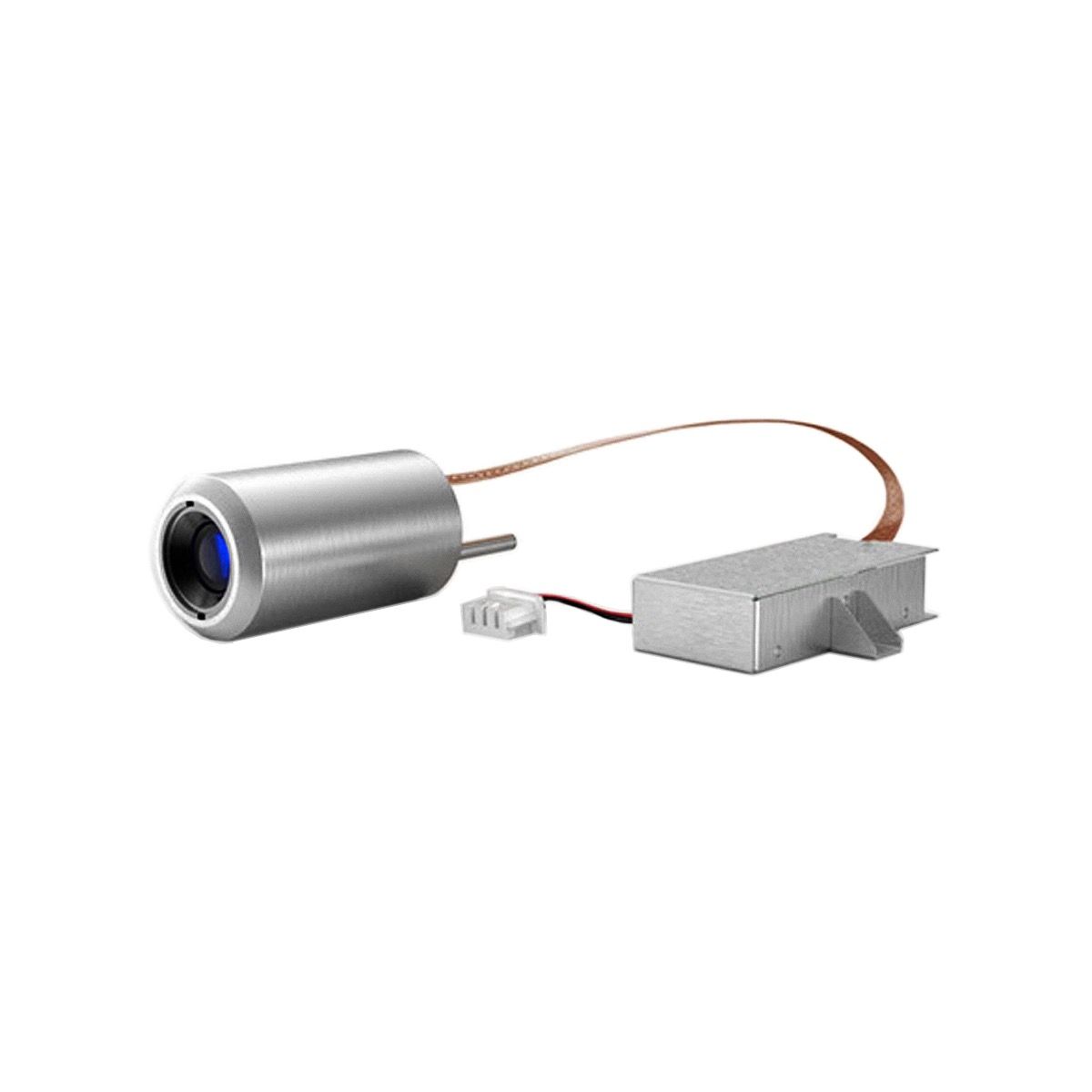

B.E. Meyers NANOPOINT FLEX OPTOELECTRONIC LASER COMPONENT

Previous  /  Next
Contact us for a price

FOR GOVERNMENT USE ONLY

BE1019
Delivery time is between 1 to 4 days.
In case of no availability we will contact you immediately.
  • Share on Facebook
  • Tweet
  • Share on Google+
  • Pin it

The NanoPoint® Flex is a miniaturized NIR commercial laser component designed for incorporation into existing products or new systems under development.

It provides a simple and cost‐effective way to integrate an IR laser pointer into an end‐use product, enhancing the overall capabilities of the system.

The NanoPoint® Flex comes in four models depending on desired power output: NanoPoint® Flex 50, 100, 150, and 200mW.

Other lower power modes or pulse modes are user controllable through Pulse Width Modulation.

This laser is effective over medium distance ranges. OUTPUT POWER CW: 50 MW.



  • LOWER OUTPUT POWER IS USER SELECTABLE BY PULSE WIDTH MODULATION CONTROL TO 2 KHZ
  • FACTORY LEVELS FROM 15 TO 200 MW.
  • LASER CLASS WAVELENGTH 852 NM.
  • OTHER WAVELENGTHS AVAILABLE BY REQUEST.
  • BEAM DIVERGENCE 0.6 X 0.3 MRAD.
  • OTHER DIVERGENCES AVAILABLE BY REQUEST.
  • CONTROL INTERFACE DISCRETE - GROUND SPECIFIED WIRE - MODULATE FIRE COMMAND TO 2 KHZ POWERNREQUIREMENTS 4-5.5V DC LESS THAN 100MA, IDLE CURRENT 1MA, CONNECTOR: MOLEX 51021-0300 .
  • CONSTRUCTION LASER HEAD: AIRCRAFT ALUMINUM, CHEMICAL CONVERSION COATED, CLASS 1A | DRIVER: NICKEL-PLATED STAINLESS STEEL, ROHS COMPLIANT OPERATIONAL TEMP -40° TO +71° C NOHD 140M.
  • DIMENSIONS LASER HEAD: 0.875 X 0.5 IN. | DRIVER: 0.45 X 0.9 X 0.225 IN (NOT INCLUDING MOUNTING EARS) WEIGHT 0.35 OZ.
  • MAX ALTITUDE 50,000 FT.
  • ENVIRONMENTAL MIL-STD FOR ENVIRONMENTAL, EMI, SHOCK AND VIBRATION.
