GSCI. HMD-800-MOD Ultra-Portable Head-Mounted Display Unit

Previous  /  Next
Contact us for a price
GSCI
19020
Add to wish list
Delivery time is between 1 to 4 days.
In case of no availability we will contact you immediately.
  • Share on Facebook
  • Tweet
  • Share on Google+
  • Pin it

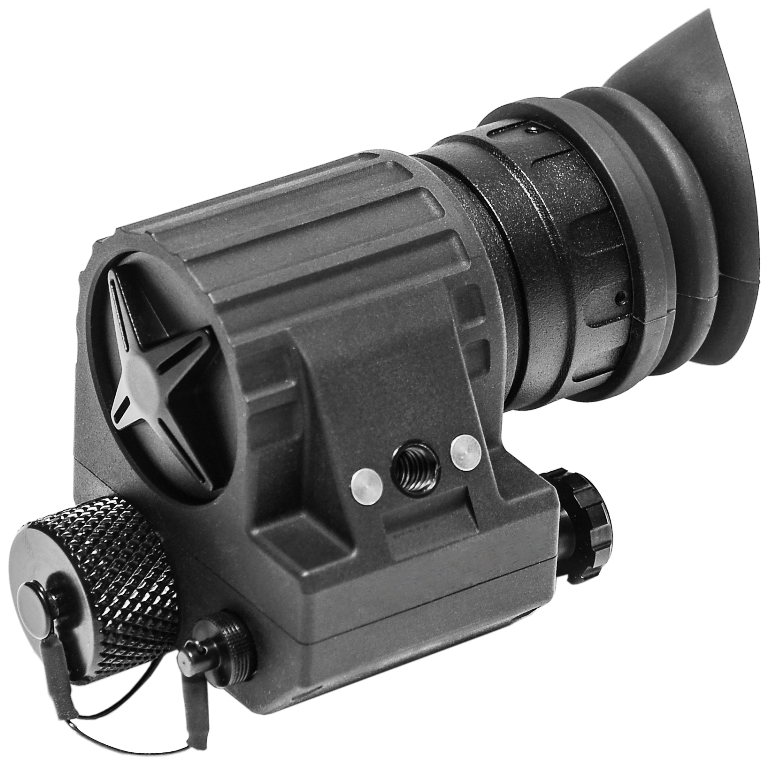

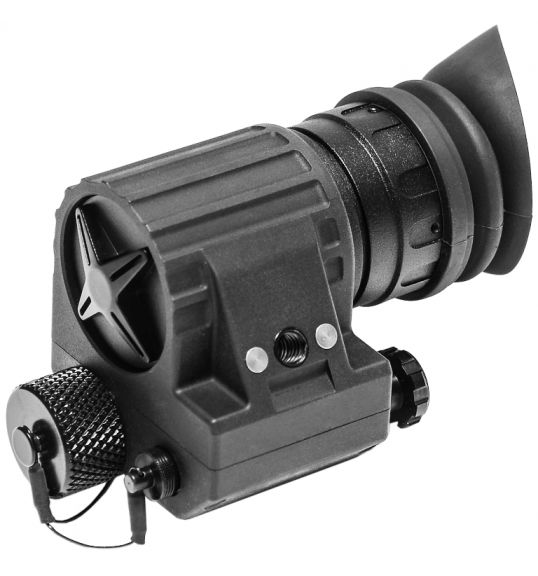

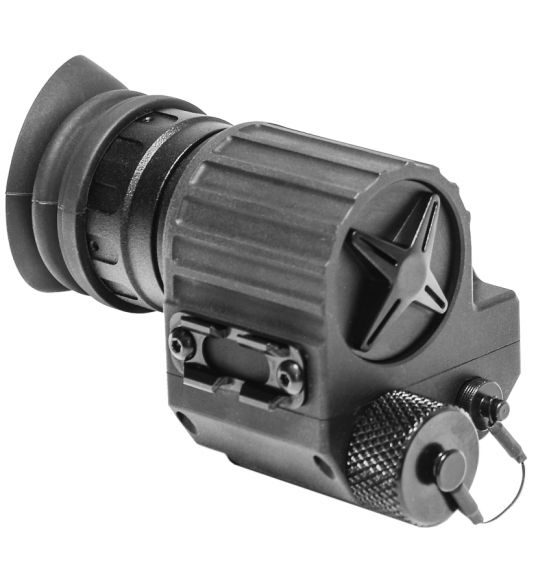

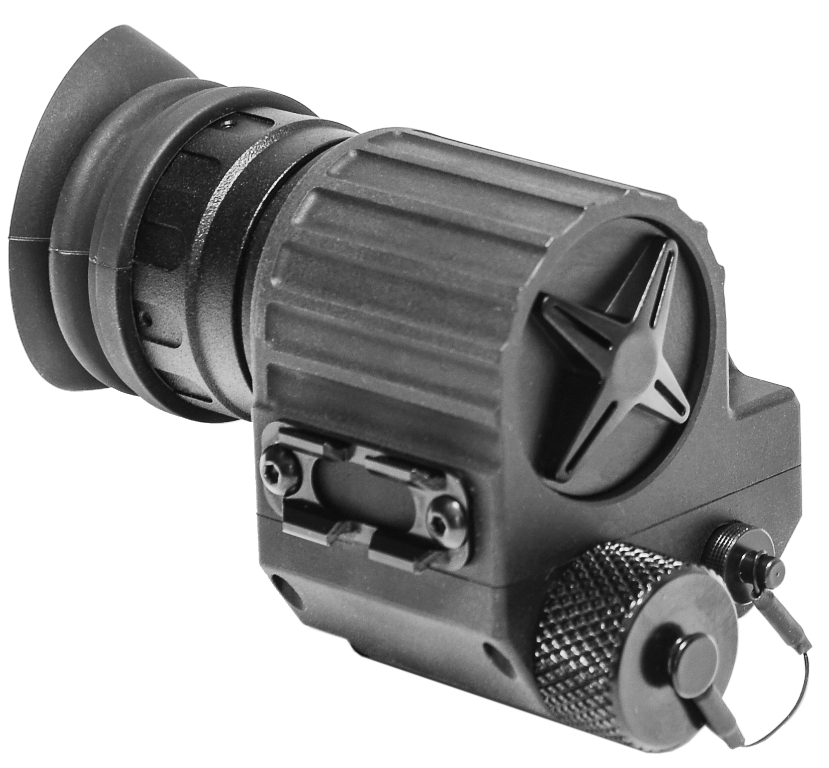

ULTRA-PORTABLE HEAD-MOUNTED DISPLAY UNIT HMD-800-MOD

HMD-800-MOD is the modernized ultra-portable display unit that transmits and displays real-time video signal from any primary electro-optical device. It has been known and tested by various tactical teams throughout the world and is a perfect tool for covert operations.
HMD-800-MOD helps you observe the surroundings without exposing yourself. It can also be used with a remote control so a user can have control over the  system from distance. In addition, with HMD-800-MOD two crew members can see through the same device at the same time.

KEY FEATURES

¨ Portable and Lightweight
¨ 800x600 Colour AMOLED Display
¨ Single Knob Operation
¨ Up to 10 Hours Battery Life


HMD-800-MOD SPECIFICATIONS
Display Type Full Size: 0.6-inch, AMOLED, Colour
Display Resolution 800x600
Display Rotation Range -45° .. +45°
Input Video Signal Auto-Detection. Analog: PAL and NTSC
Power Source One (1) CR123 Battery
Flip-Up-Off Feature Yes
Polarity-Independent Power Supply Yes
Environmental Protection Min. IP67
MIL-STD-810G Compliant Yes
Nitrogen-Purged Housing Yes
Battery Life Up to 10 Hours
Dimensions 83x60x65mm
Weight 200 grams
Operating Temperature -40°C .. +50°C
Warranty 7 Years, Limited
Export Available Worldwide


STANDARD EQUIPMENT: WHAT’S IN THE BOX
1 HMD-800-MOD Unit
2 Rubber Eyecup (Installed on the device) +  Spare
3 Demist Shield
4 Connection Cable
5 Neck Cord
6 Soft Carrying Pouch
7 User Manual
8 7-Year Warranty with Activation Form
9 Cleaning Kit (3-in-1 Multi-Pen + Soft Cleaning Cloth)

OPTIONAL EQUIPMENT
A Standard Non-Flip-Up Head Gear PHG-7 (Bayonet Type only)
B Advanced Helmet Harness HMH-1 for MICH / ACH Helmets
C Universal Multi-Voltage Battery Pack MVP-240
D USB Power Cable
E Universal Remote Control Unit TRC-120 (Comes with connection cable)
