GSCI. PVS-14C Tactical Night Vision Monocular

Previous  /  Next
Contact us for a price
GSCI
19009
Delivery time is between 1 to 4 days.
In case of no availability we will contact you immediately.
  • Share on Facebook
  • Tweet
  • Share on Google+
  • Pin it
ADVANCED TACTICAL NIGHT VISION MONOCULAR PVS-14C

The legendary PVS-14C is a great choice for conducting combat operations, including dismounted terrain navigation in extremely low light conditions. The highly versatile PVS-14C system can be used as a hand-held or hands-free single eye goggle for increased mobility and tactical awareness, or as a night vision close-quarters weapon sight. Lightweight, rugged and waterproof, the PVS-14C is a powerful performer for use in confined as well as open spaces, allowing the user to retain their night adapted vision in one eye while viewing their surroundings through the illuminated eyepiece of the PVS-14C. The device is powered by AA or CR123 battery that can be installed regardless of polarity - it is just one less thing to worry about in the dark environment.



1X

-6 .. +4



Optical Magnification

Diopter Adjustment Range

Stow Safety Feature

Yes

Built-In IR Illuminator

Yes

Momentary IR-On Button

Yes

Power Source

1pc AA or 1pc CR123

Battery Life

Up to 40 hours

External Power Supply

MOD Models Only: 4VDC .. 15VDC




Manufacturer's Warranty

7 Years, Limited

Operating Temperature

-40°C .. +50°C

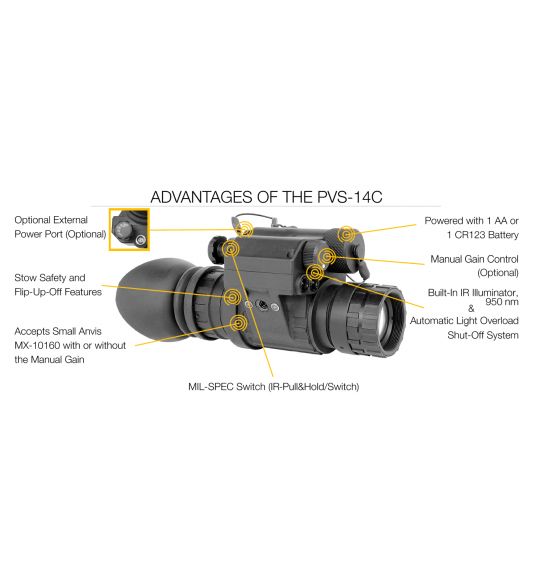

KEY FEATURES

¨ Universal Night Operations Tool
¨ Multi-Use System Design
¨ External Power Port
¨ Unique Safety Features
¨ Extended Range Observation
¨ High Situational Awareness
¨ Preferred choice of NATO forces

MAIN APPLICATIONS

¨ Defence
¨ Security
¨ Surveillance
¨ Border Patrol
¨ Navigation
¨ Reconnaissance


TECHNICAL DATA
Optical Magnification 1X
Objective Lens 27mm
Focusing Range 0.25m .. Infinity
Extended Eyerelief 30 .. 50mm
Diopter Adjustment Range -6 .. +4
Built-In IR Illuminator Yes: 850 nm
IR-On Indicator Yes: concealed into FOV
MIL-SPEC Pull-Action Switch Yes
Manual Gain Control Yes: Optional
Bright Light Protection Yes
Automatic Light Overload Shut-Off Sensor Built-In
Low Battery Indicator Yes: concealed into FOV
Stow Safety Feature Yes
Flip-Up-Off Feature Yes
Power Source 1pc AA or 1pc CR123
External Power Port Optional: 4VDC .. 15VDC
Any Polarity Battery Protection Built-In
Battery Life 40 Hours
Dimensions 110x65x55mm
Mass <330 grams
Operating Temperature -40°C .. +55°C
Made In Canada ITAR-Free

* Batteries not included

IMAGE INTENSIFIER TUBES:  GEN 2+, GEN 3, ‡ ECHO, ‡ 4G
Autogating and White Phosphor options are available with selected tubes. Contact us for more details.
‡ ECHO and 4G are the registered trademarks of Photonis Technologies S.A.S.


STANDARD EQUIPMENT: WHAT’S IN THE BOX
1 Night Vision Monocular
2 Rubber Eyecups (1 Installed on the device) + 1 Spare with Retaining Ring
3 Demist Shield
4 Sacrificial Window
5 Stow Safety Feature (Integrated)
6 AA Battery Extension Adapter (Installed on the device)
7 Rubber Daytime Filter with Training Hole (Installed on the device)
8 Neck Cord
9 Soft Carrying Pouch
10 User Manual
11 Waterproof Hard Case (Optional for Gen 2+ Models)
12 7-Year Warranty with Activation Form
13 Cleaning Kit (3-in-1 Multi-Pen + Soft Cleaning Cloth)
