B.E. Meyers PRECISIONPOINT SERIES OPTOELECTRONIC LASER COMPONENT

The PrecisionPoint® Series offers two different NIR commercial laser components (standard and NDL) with two output modes per laser (low, high, (Pulse can be obtained by modulating the low or high enable line)).

This Series is designed to assist low-light, high-magnification sensors.

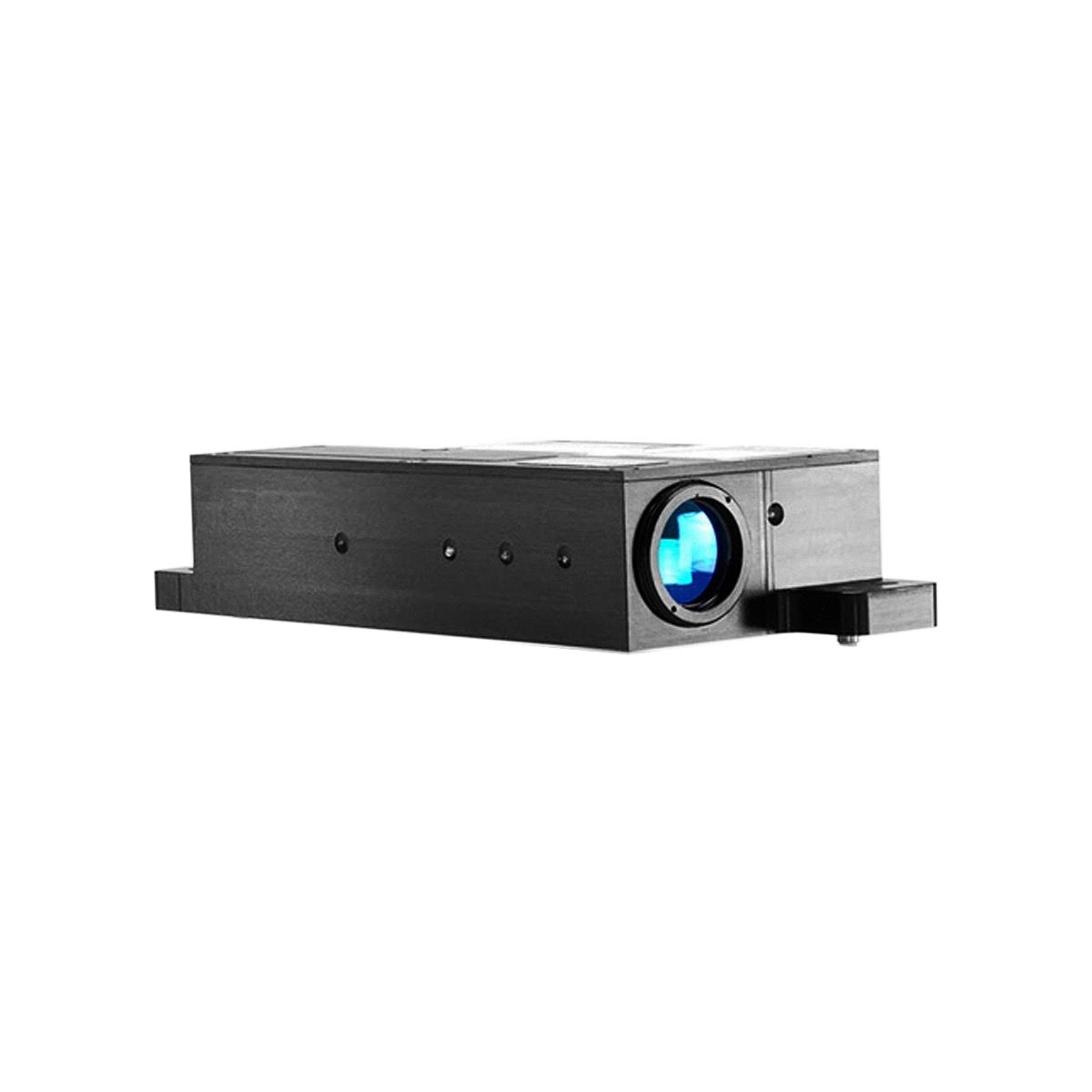

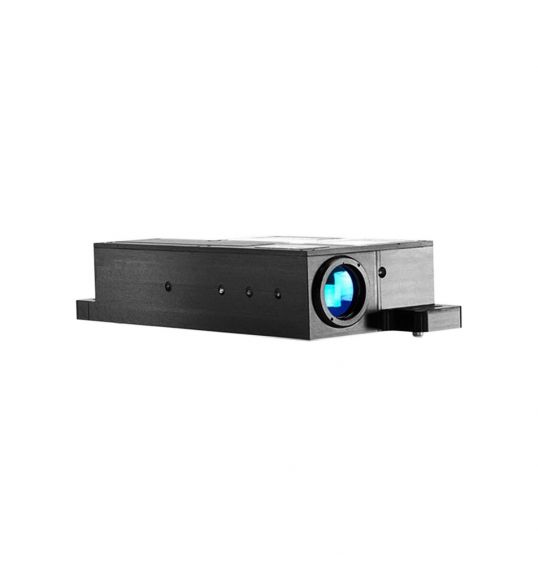

The PrecisionPoint® Standard is a 770mW high powered, 1 mrad, NIR commercial laser component designed for integration into EOIR systems.

The PrecisionPoint® Standard is a one-piece laser that provides a collimated beam that can be used for pointing or illumination for higher magnification sensors.

This laser is effective over longer ranges and has two modes of operation (low, high, (Pulse can be obtained by modulating the low or high enable line).

• OUTPUT POWER LOW: 375 MW - HIGH: 770 MW PULSE: CUSTOMER CONTROLLED.
• LASER CLASS: N/A.
• WAVELENGTH 860 NM.
• BEAM DIVERGENCE 1.25 X 1.0 MRAD.
• CONTROL INTERFACE DISCRETE - HIGH, LOW, AND PULSE MODES.
• POWER REQUIREMENTS 5.V DC @ LESS THAN 1.5A.
• CONSTRUCTION AIRCRAFT ALUMINUM, BLACK ANODIZE. STAINLESS STEEL .
• HARDWARE. OPERATIONAL TEMP -40° TO +55° C.
• NOHD 371M @ HIGH POWER.
• DIMENSIONS 4.2 X 2.0 X 1.0 IN.
• WEIGHT 8.5 OZ.
• MAX ALTITUDE 50,000 FT.
• ENVIRONMENTAL MIL-STD FOR ENVIRONMENTAL, EMI, SHOCK AND VIBRATION
